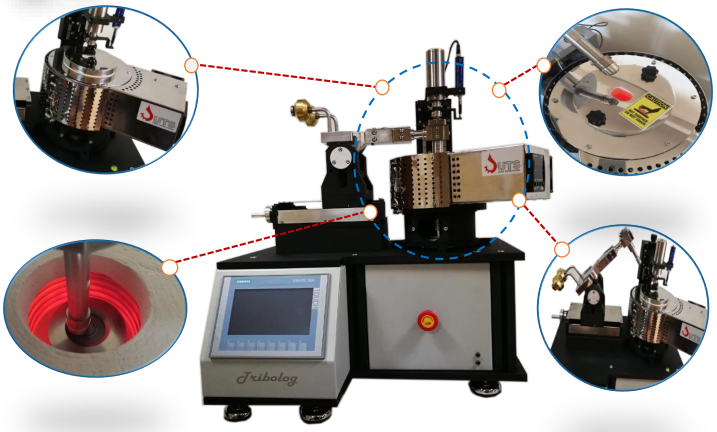

High Temperature Test Module
UTS TRIBOLOG provides tribological tests at elevated temperatures with an additional high-temperature testing module.
This module was developed for the tribological characterization of materials to be used in environments where high temperature is operative such as internal combustion engines, steam turbines, jet engines, and power plants.
This module is designed to be compatible with the rotary pin-on-disk test motion of the main test machine.
-
An oven-type heating system is used with the module The heating rate can be adjusted by a PID-controlled system.
-
Tribological tests can be performed between room temperature and 800°C with an accuracy of ±3 °C.
-
Materials with high thermal stability (superalloy) are used for parts in the heating oven.
-
High-temperature stable sensors are used.
-
Optionally, a wear depth sensor option is also available.
Test Method
This module mainly works with the rotative main motion type.
However, the regular pin on disc sample binding sections is completely removed and replaced with a special section made of heat-resistance materials.
The test specimens are placed on a special sample holder disc made of super alloys.
Then the load is applied via the arm as in the rotative movement module, and the sensor measurements are done in the same way.
In the lower part of the oven, there is a drive shaft and fans specially designed to prevent the heat generated in the furnace from spreading.
The oven temperature setting is carried out by a PID controller which is placed on the module.
Test Samples
Pin or plate-shaped samples are used.
Balls can be used both as abrasive and as wear samples.
Special sample holders are available for holding plate-type samples.
Generally, 100Cr6 balls are offered as abrasive. But other hard abrasive balls such as WC and Alumina are also available.
Surface parallelism and roughness level of abrasive plate type samples are important for the reliability and repeatability of the results.
Specifications:
|
|
Motion Type
|
|
Motion Kind
|
Sample Geometry
-
Pin, Ball, Disc and other special geometries.
|
|
Liquid Container
|
Sensors
-
Friction Force, Temperature, Wear Depth Measurement, Rotational Speed.
|
Software
-
TriboSoft-µ - A user-friendly tribological software.
|
Disk Rotation Speed
-
0-1500 rpm (Optional 3000 rpm)
|
Friction Force Measurement
-
0-100 N firiction force with a high resolution load-cell (accurity : ±0,02 N)
|
Normal Weight
-
1-100 N normal load (optionally up to 200 N)
|
Test Temperature
-
Adjusted between Room Temperature-800 °C (±3 °C Resolution)
|
Sample Holders
-
Super alloy holder plates for oven environment.
|
Pin Holder
-
4-10 mm (4, 6, 8 and 10 mm standartd)
|
Ball Holder
-
4-10 mm (4, 6, 8 and 10 mm standartd)
Steel, Diamond, WC, Al2O3 and many other balls options.
|
|
Diameter | Thickness Of The Sample
|
Graphical Options
-
Direct
-
Friction Coefficient - Time / Distance
-
Friction Force - Time / Distance
-
Wear Depth - Time / Distance
-
Temperature - Time / Distance
-
Indirect
-
Weight / Volume Loss - Time / Distance
-
Sliding Speed - Friction Coefficient
-
Surface Pressure - Friction Coefficient
-
Sliding Speed - Wear Depth
-
Surface Pressure - Wear Depth
-
Sliding Speed - Weight / Volume Loss
-
Surface Pressure - Weight / Volume Loss
|
|
Power Input
|
|
Machine Dimensions
|
|
Machine Weight
|
Relayed Standards
-
ASTM G99 - Standard Test Method for Wear Testing with a PIN-ON-DISC Apparatus.
|
Key Words
-
High Temperature Tribometer, Tribological tests at high elevated temperatures, ASTM G99
|
NOTE :
The parameters and options given here are provided as standard options. Possible extended parameters or new possible options can be provided if needed.
